Dynamic and Static WebSocket options in the Voice Streaming page

Purpose

This document explains how to configure Static and Dynamic endpoints for two-way audio streaming on the Voice Streaming page. It describes the new Endpoint type field, request and response formats, timeout rules, live request preview, and includes example implementations (NestJS & Express) for a Dynamic endpoint that returns a WebSocket URL.

What’s New

Endpoint type

You can now choose between:

• Static — a direct wss:// URL for your voice bot.
• Dynamic — a POST or GET HTTP endpoint that returns the wss:// URL at call time.

Predefined variables for Dynamic requests

These variables can be injected into the request:

• $callId
• $fromNumber
• $toNumber
• $status

Custom variables

You can add any additional fields you need. They will be sent with the request.

Real-time request preview

You can see the exact cURL request the platform will send and copy/paste it to test your endpoint quickly.

Strict response contract

Dynamic endpoints must return a strictly formatted JSON response (details below).

Timeouts and failure behavior

Dynamic endpoint resolution follows a strict SLA. Timeouts or invalid responses lead to call failure.

When to Use Each Endpoint Type

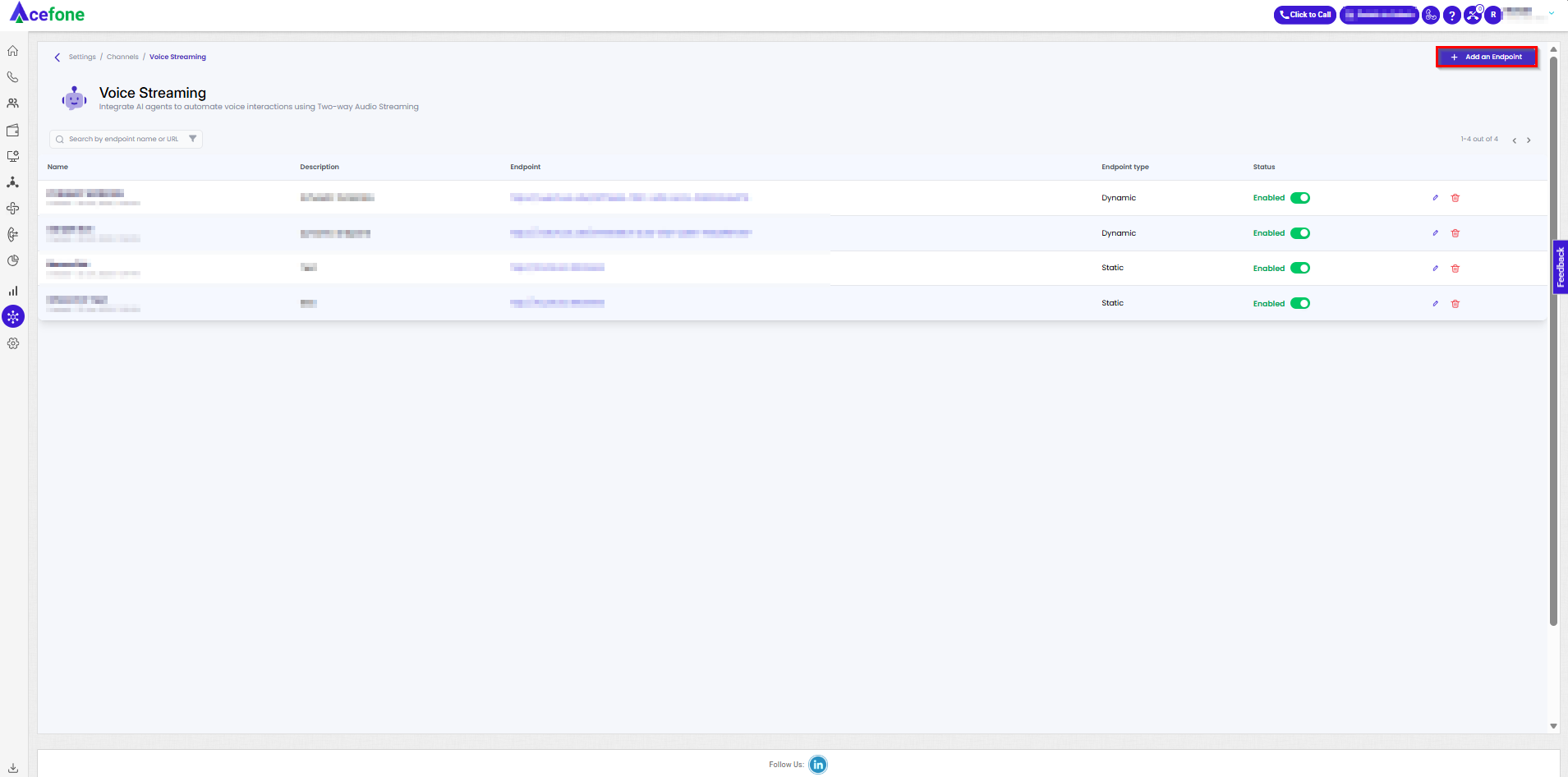

Add an Endpoint

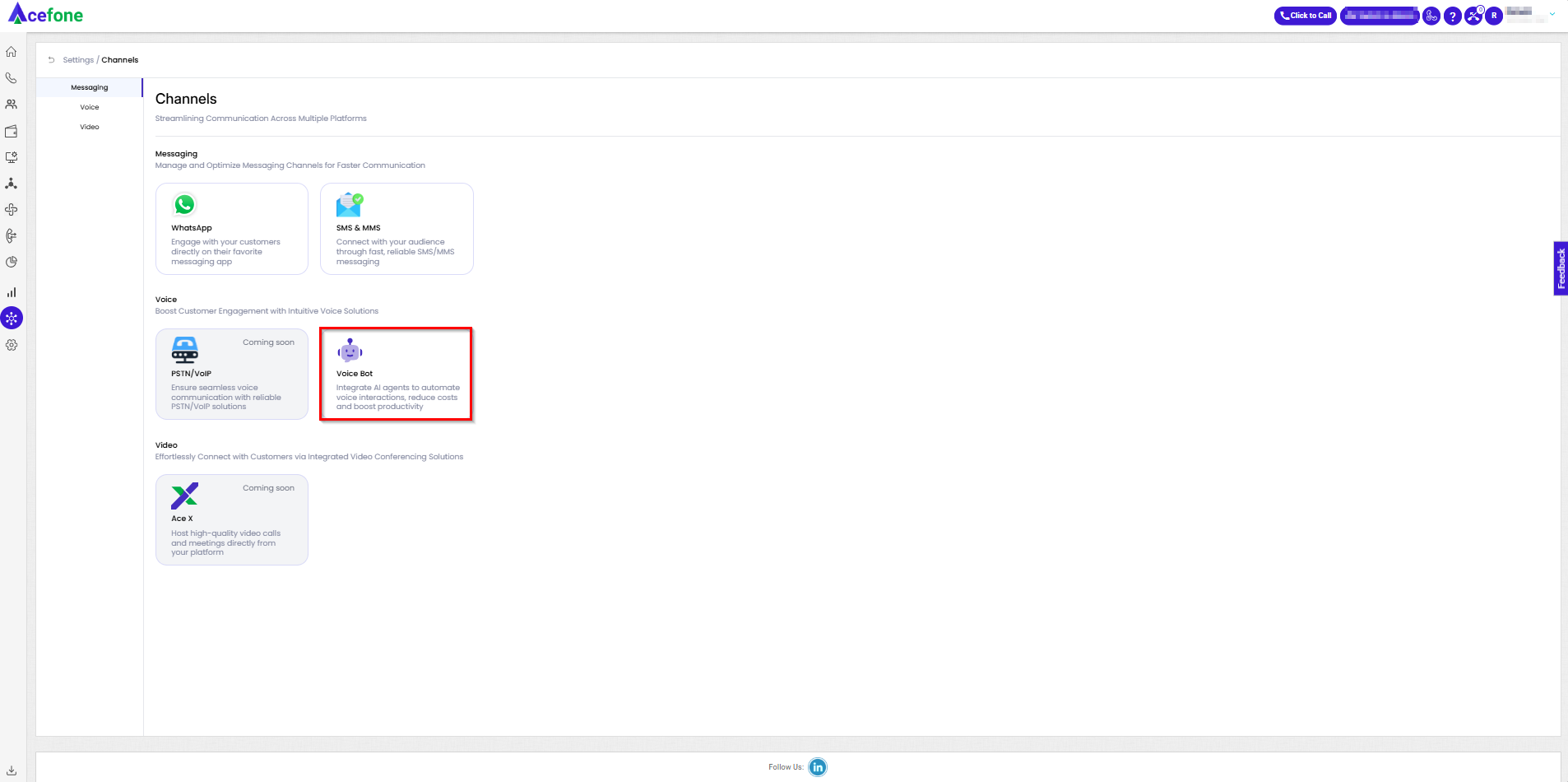

1. Go to: Settings → Channels → Voice Bot.

2. Click Add an Endpoint.

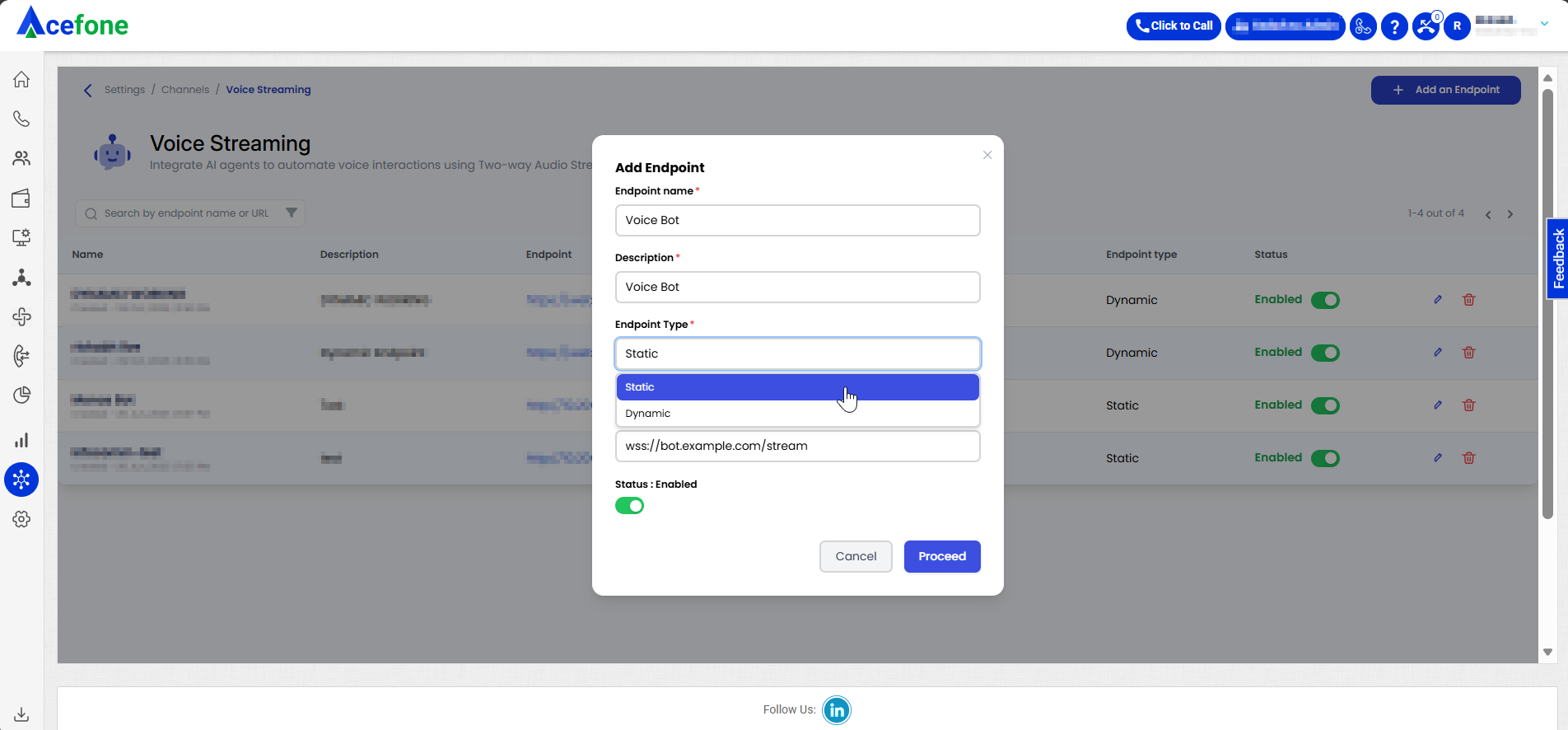

3. By default, the Endpoint type is Static URL.

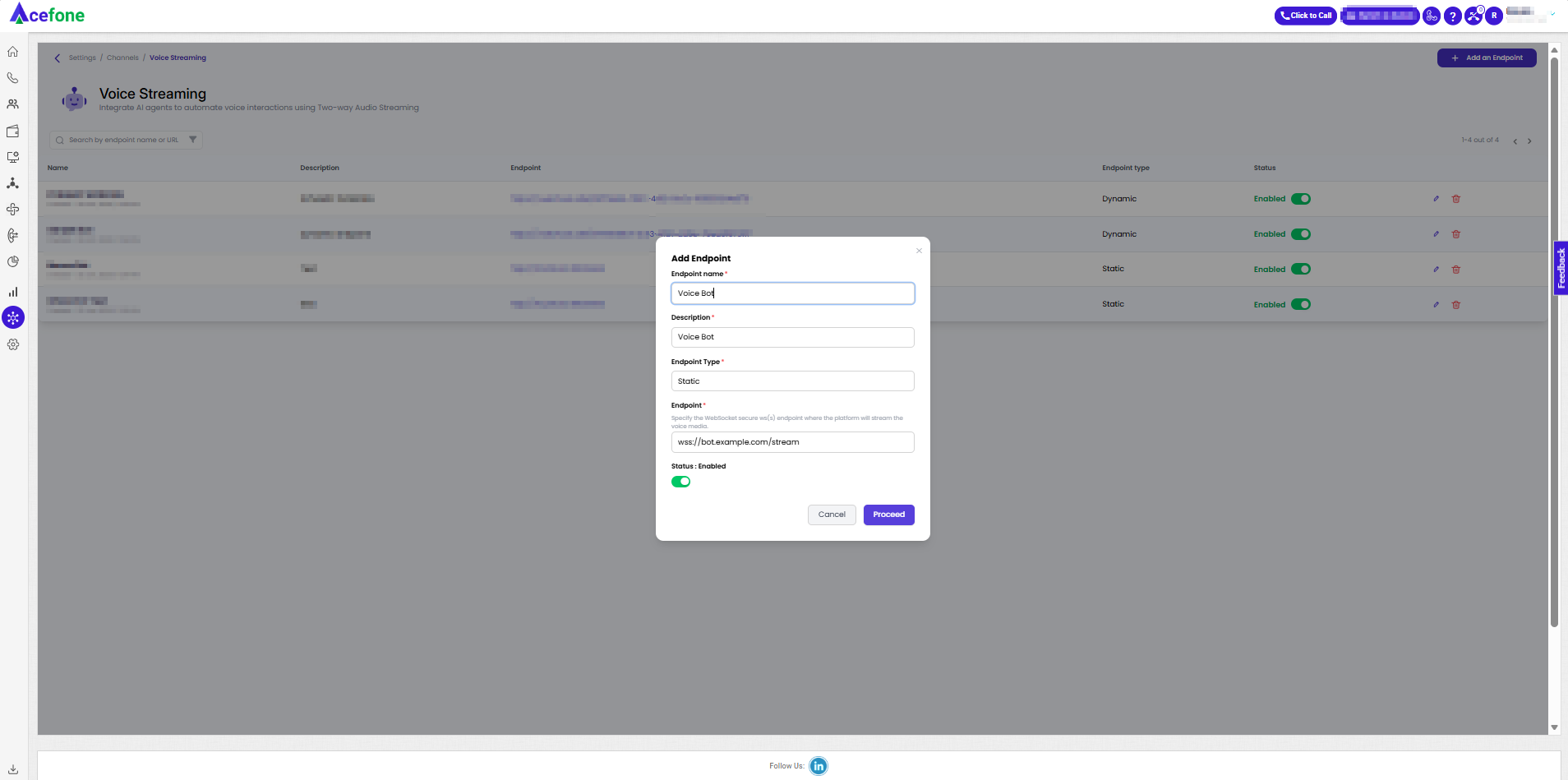

4. Fill Name and Description.

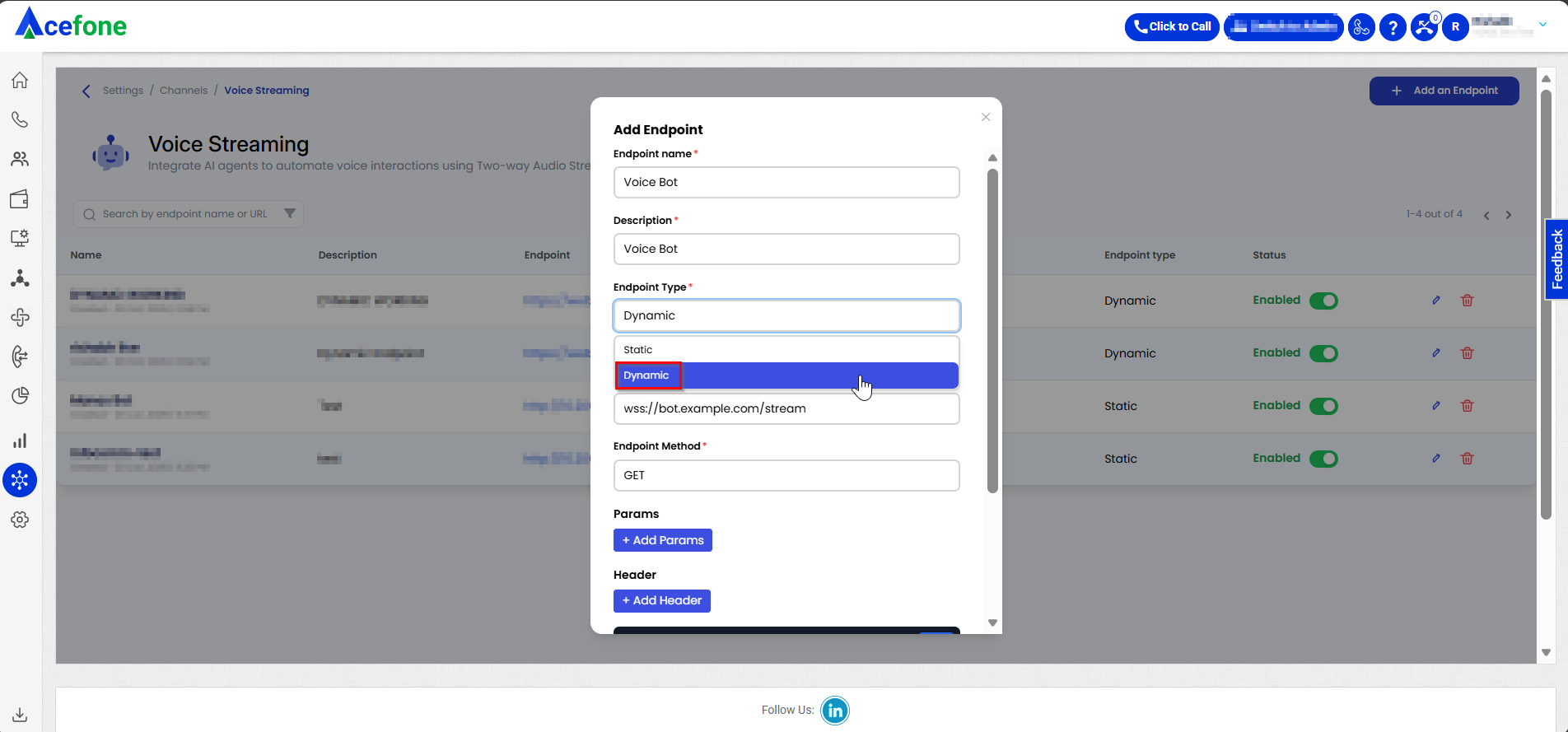

5. Choose Endpoint type:
   • Static: paste the direct wss:// URL.

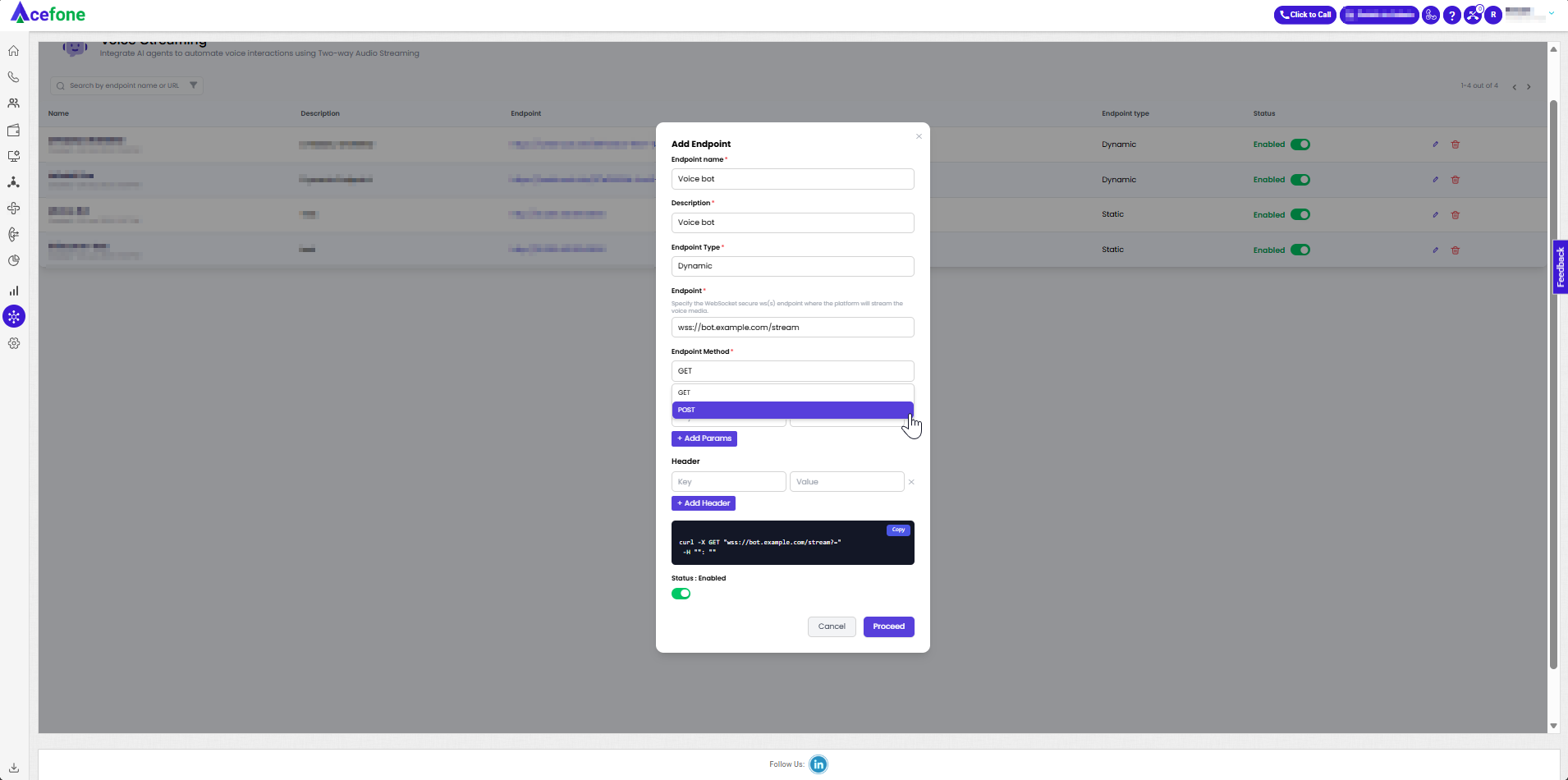

   • Dynamic: select GET or POST, configure Body and Headers.

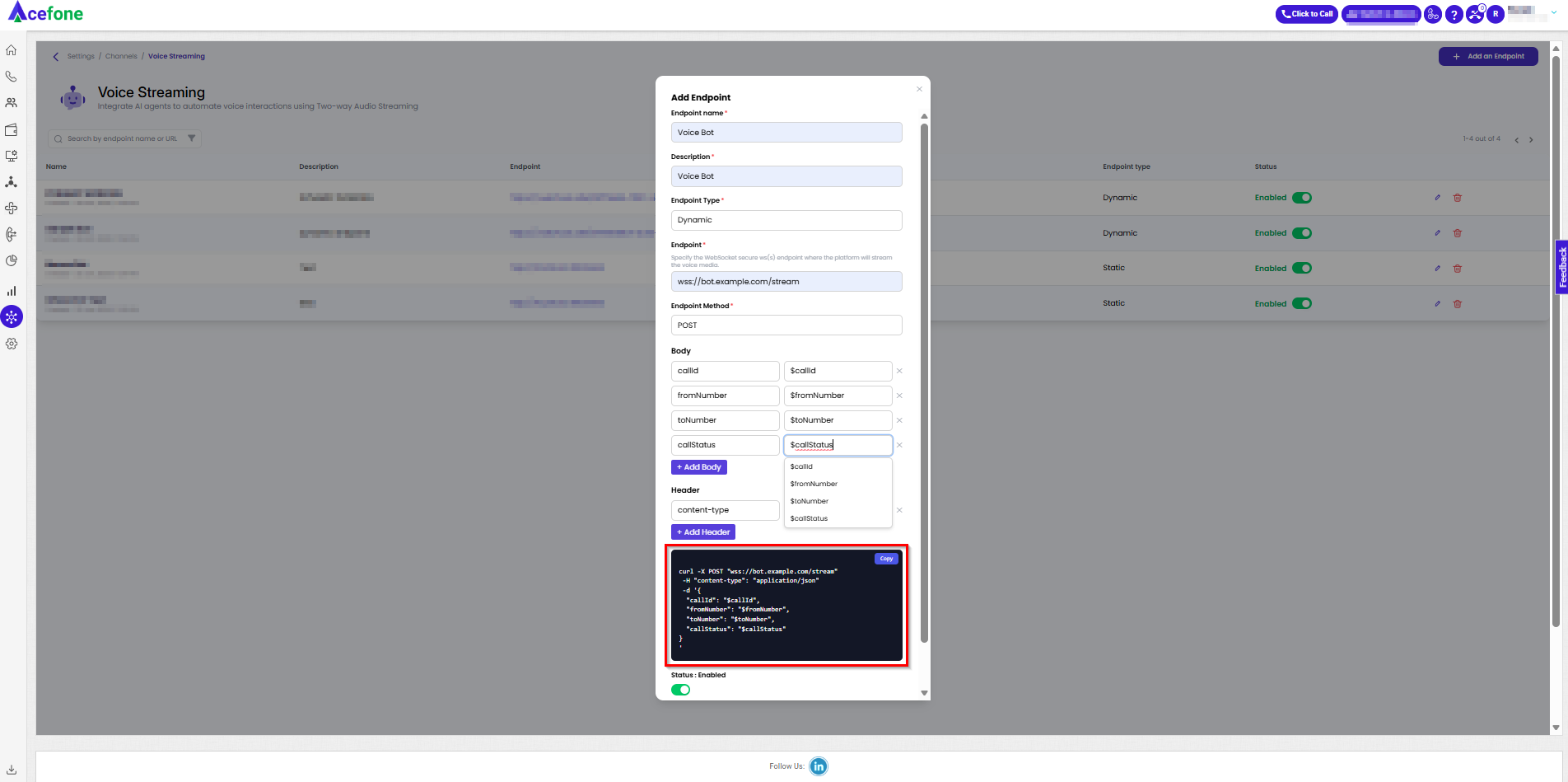

6. Use the request preview to verify what will be sent.
7. Click Save and toggle Enabled to activate.

Static Endpoint

• Provide the direct WebSocket URL of your voice bot (e.g., wss://bot.example.com/stream).

• The platform connects to this URL and streams events and media over that socket.

Dynamic Endpoint

Your service is called in real time to return the WebSocket URL to use for this call.

Request (what we send to you)

Method:

• POST (JSON body) or
• GET (query string).
  You choose this in the UI.

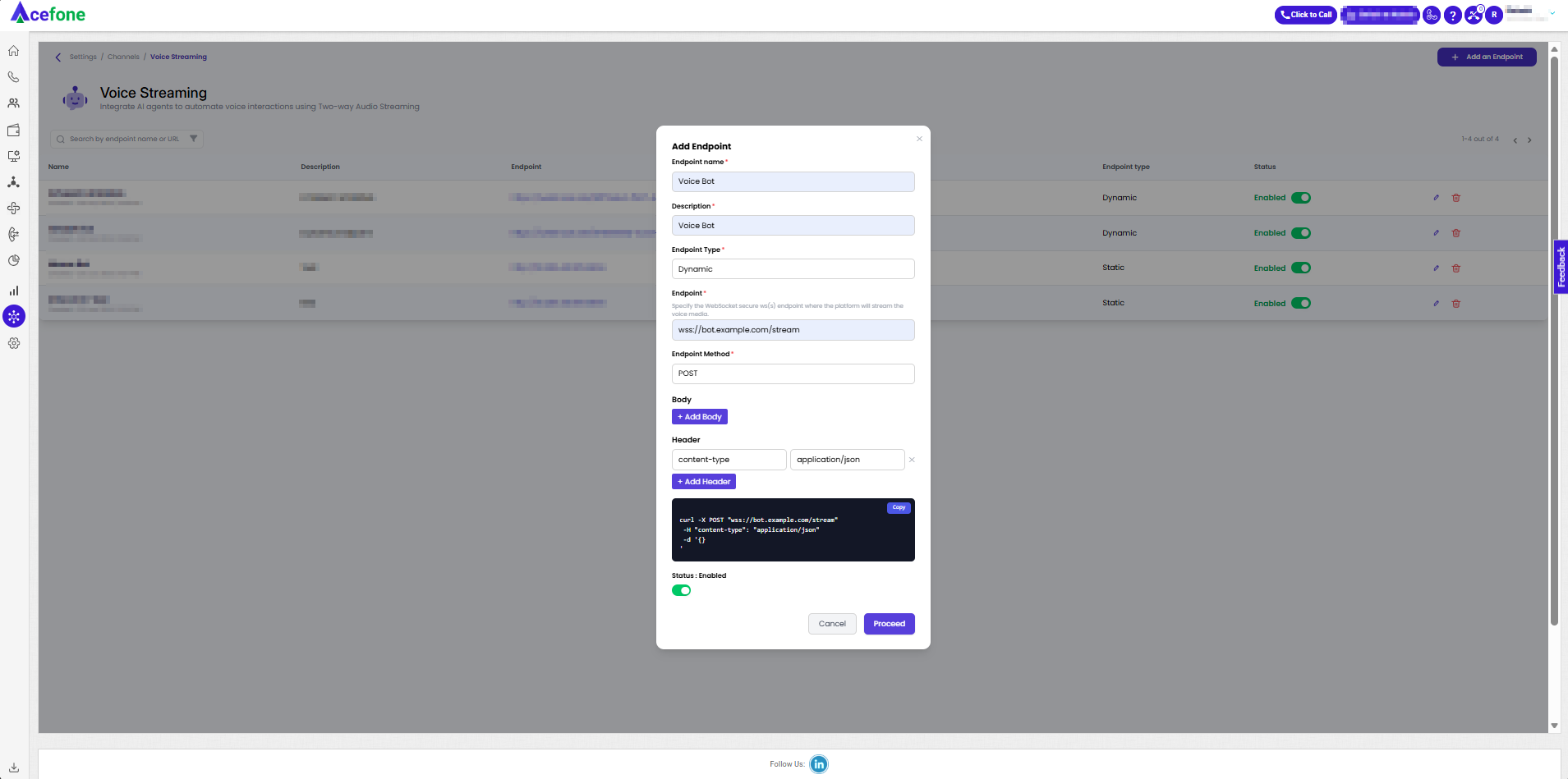

Headers:

• At minimum: content-type: application/json for POST.
• You may add more headers (e.g., auth).

• Body / Query parameters:
  You map keys to variables in the UI.

Predefined variables

Custom variables

Add any key/value pairs you need (e.g., tenantId, locale, plan).
They are sent alongside the predefined variables.

Example POST request body

{
  "callId": "$callId",
  "fromNumber": "$fromNumber",
  "toNumber": "$toNumber",
  "status": "$status",
  "tenantId": "retail-us"
}

At runtime the variables are replaced with actual values.

Example cURL (from the preview)

curl -X POST "https://your-domain.example.com/voice/endpoint" \
 -H "content-type: application/json" \
 -d '{
   "callId": "c-3f9e17",
   "fromNumber": "+15551234567",
   "toNumber": "+15557654321",
   "status": "ringing",
   "tenantId": "retail-us"
 }'

(For GET, the same fields are sent as query parameters instead of JSON.)

Response (what you must return)

Your service must respond within 2000 ms with HTTP 200 and exactly the following JSON:

{
  "sucess": true,
  "wss_url": "wss://<your-bot-host>/stream?token=..."
}

📘

Important

• The keys must matchexactly as shown (sucess and wss_url).
• Any other keys, a non-200 status code, invalid JSON, or missing keys will cause the request to be declined and the call will hang up.
• If your existing service uses a differently spelled flag (e.g., success), update it to match the required schema above.

JSON schema (reference)

{
  "type": "object",
  "properties": {
    "sucess": { "type": "boolean" },
    "wss_url": { "type": "string", "pattern": "^wss://.+" }
  },
  "required": ["sucess", "wss_url"],
  "additionalProperties": false
}

End-to-End Flow (Dynamic Endpoint)

1. The platform sends GET/POST to your Dynamic endpoint with mapped variables.
2. Your service computes the correct wss://… URL (optionally using custom variables).
3. Your service returns 200 with JSON:
   JSON

   {"sucess": true, "wss_url": "wss://…"}

within ≤ 2000 ms.

4. The platform connects to that WebSocket URL.
5. All events and audio media are streamed through that WebSocket.

If any step fails (non-200, incorrect payload, timeout > 2000 ms), the request is declined and the call ends immediately.

Operational Rules & Limits

• Response deadline: 2000 ms. Exceeding this results in hang up.
• HTTP code: must be 200.
• Response JSON: must contain only the expected keys:
  • sucess (boolean)
  • wss_url (string, must be a valid wss:// URL)
• On failure (wrong payload/code/timeout): request is declined and the call is hung up.
• After connection, all events and audio media are transmitted via the returned wss:// URL.
